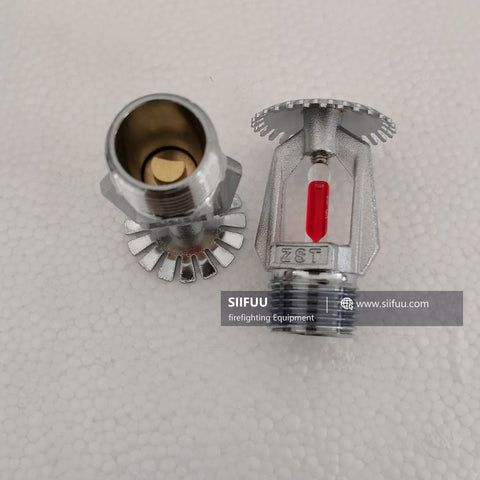

1/2" Pendent 1/2" Upright 1/2" Sidewall
1) Size: 1/2''(DN15)
2) Working pressure: 1.6MPa / 16bar / 235psi
3) Frame Material: brass
4) Type: Pendent / Upright / Sidewall
5) Temperature: 68℃
6) Glass bulb: standard response
7) K factor: 5.6gpm/psi½(80 lpm/bar½);
8) Thread: BSP1/2"
9) Surface colour: chrome
10) Weight: pendent=50.3g, upright=50.5g, sidewall=53.8g
1/2" Pendent, Slight 1/2" Upright, Slight 1/2" Sidewall, Slight
1) Size: 1/2''(DN15)
2) Working pressure: 1.6MPa / 16bar / 235psi
3) Frame Material: brass
4) Type: Pendent / Upright / Sidewall
5) Temperature: 68℃
6) Glass bulb: standard response
7) K factor: 5.6gpm/psi½(80 lpm/bar½);
8) Thread: BSP1/2"
9) Surface colour: chrome
10) Weight: pendent=44g, upright=44.2g, sidewall=47g
3/4“ Pendent 3/4“ Upright 3/4“ Sidewall
1) Size: 3/4''(DN20)
2) Working pressure: 1.6MPa / 16bar / 235psi
3) Frame Material: brass
4) Type: Pendent / Upright / Sidewall
5) Temperature: 68℃
6) Glass bulb: standard response
7) K factor: 8gpm/psi½(115 lpm/bar½);
8) Thread: BSP3/4"
9) Surface colour: chrome
10) Weight:pendent=76.5g, upright=77.5g, sidewall=81.8g
